Break the "Information Silos" of Traditional Manufacturing
The traditional separation of machining and inspection leads to significant downtime and data lag, directly impacting the yield of high-precision manufacturing.
Excessive Downtime
Separation of machining and measuring causes parts to move between machine tools and CMMs, resulting in wasted waiting time and low equipment utilization.
Delayed Data Feedback
Offline inspection data cannot be fed back to the machine tool in real-time. Scrap is often discovered too late, easily leading to batch rejections.
Re-clamping Errors
Re-clamping parts after removal makes it difficult to realign datums. Offline measurement accuracy is hard to guarantee for large or thin-walled, easily deformed parts.
Full-Featured On-Machine Measurement Solution
Tools covering the entire lifecycle from path planning and simulation to execution and analysis reporting.

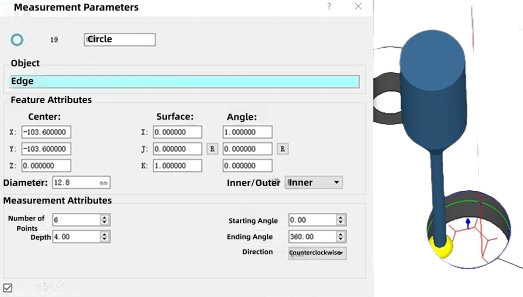

Flexible Path Planning
Automatically extract feature attributes based on 3D models; supports automated programming for 2D/3D features.
- Supports features like holes, slots, spheres, cones, rings, etc.
- Automatically generates interference-free, safe measurement paths.

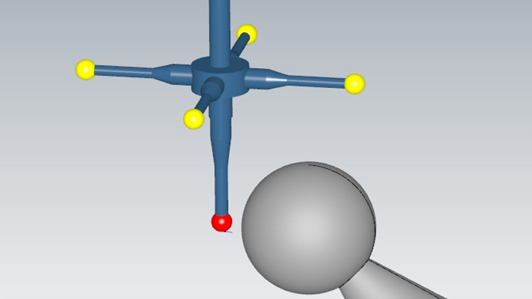

High-Precision Probe Calibration
Ensures the foundational accuracy of the measurement system; supports various calibration methods and 3D compensation.
- Supports calibration via standard spheres and ring gauges.
- Supports 3D calibration for star, L-shaped, and cylindrical styli.

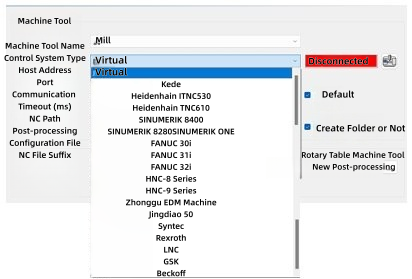

One-Click Automated Execution
Deeply integrated machine tool communication to realize unattended automated measurement processes.
- Automatically transmits programs and retrieves results.
- Supports mainstream systems like Siemens, Fanuc, Heidenhain, etc.

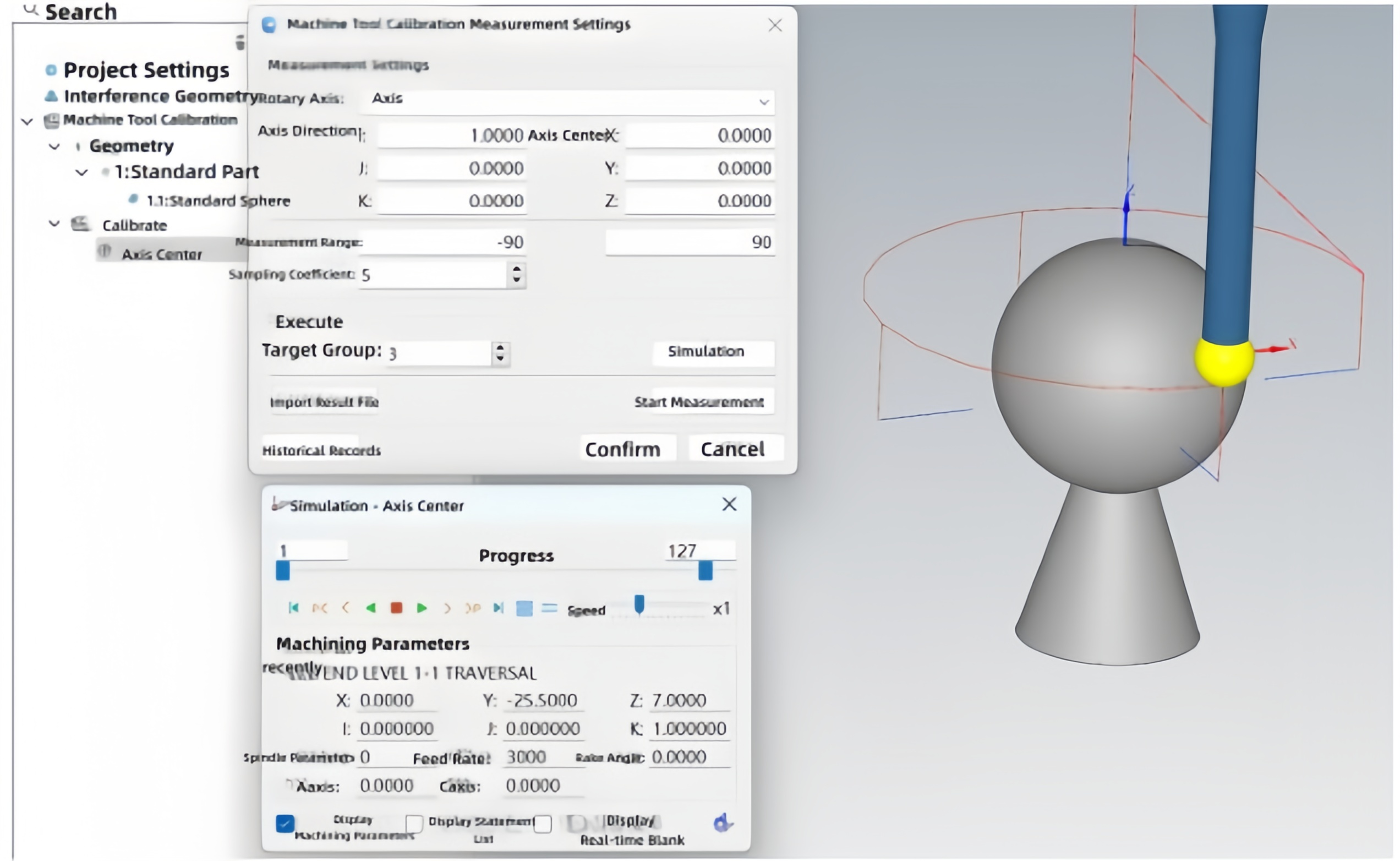

Intelligent Closed-Loop Compensation
Automatically corrects machining parameters based on measurement deviations to achieve a quality closed loop.
- Supports tool radius/length compensation and logic judgment.
- Iterative tool compensation until the part meets specifications.

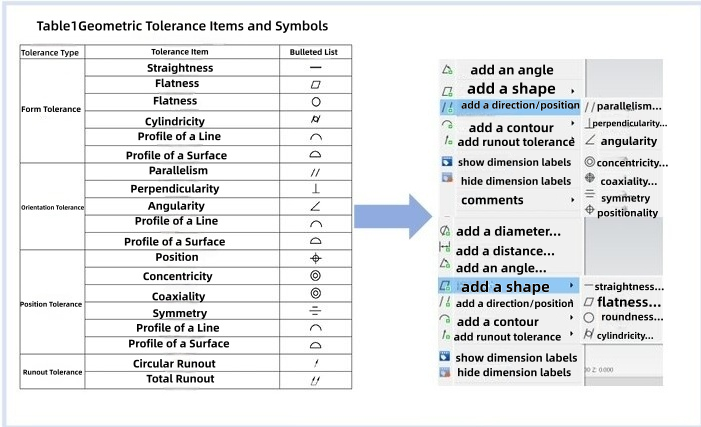

GD&T Evaluation Reports
Professional quality analysis with authoritative algorithm accuracy certification.
- Certified by German PTB with 0.1µm accuracy.
- Supports all Geometric Dimensioning & Tolerancing (GD&T) items.
- One-click generation of PDF/CSV/TXT reports.

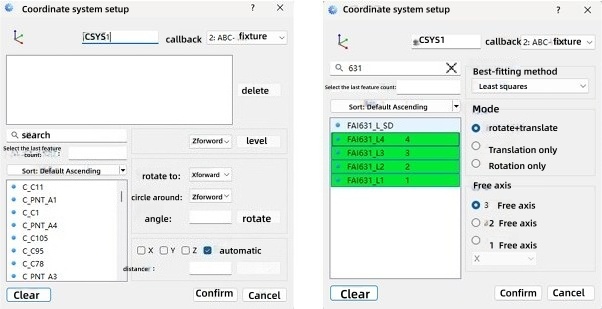

Rapid Setup (Coordinate Reconstruction)
Automatically calculates part deviation via measurement and updates the machining coordinate system, replacing manual alignment.
- Supports 3-2-1 alignment and Best Fit methods.
- Solves positioning challenges for complex curved parts.
Solving Complex Manufacturing Challenges

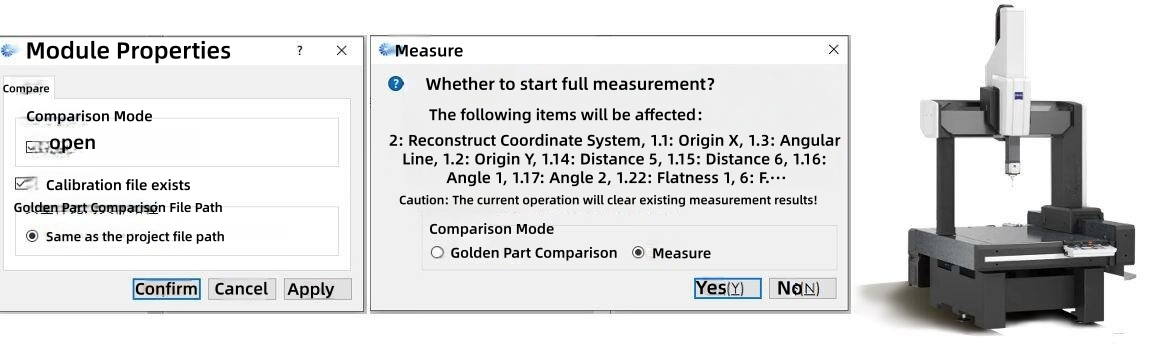

Comparative Measurement
To eliminate the impact of machine tool thermal deformation or geometric errors, YSCAM supports a "Golden Part" comparison mode. It uses CMM inspection data as a benchmark to correct on-machine measurement data, ideal for quality monitoring of high-precision batch production.
High Precision
Eliminate Machine System ErrorsBatch Production
Real-time Batch Quality Monitoring

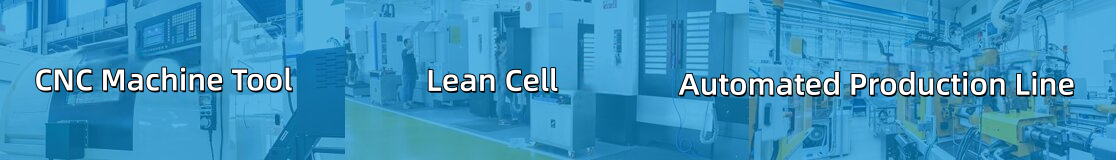

Automated Production Line Integration
YSCAM is not just standalone software; it integrates seamlessly into automated production lines. It supports connection to MES, MOM, and SPC quality systems, enabling full-process tracking and traceability from production quality data to semi-finished product quality.
MES Integration
Seamless Factory System AccessReal-time Monitor
Real-time Monitoring & Alarms
Extensive Compatibility
Customer Success Stories

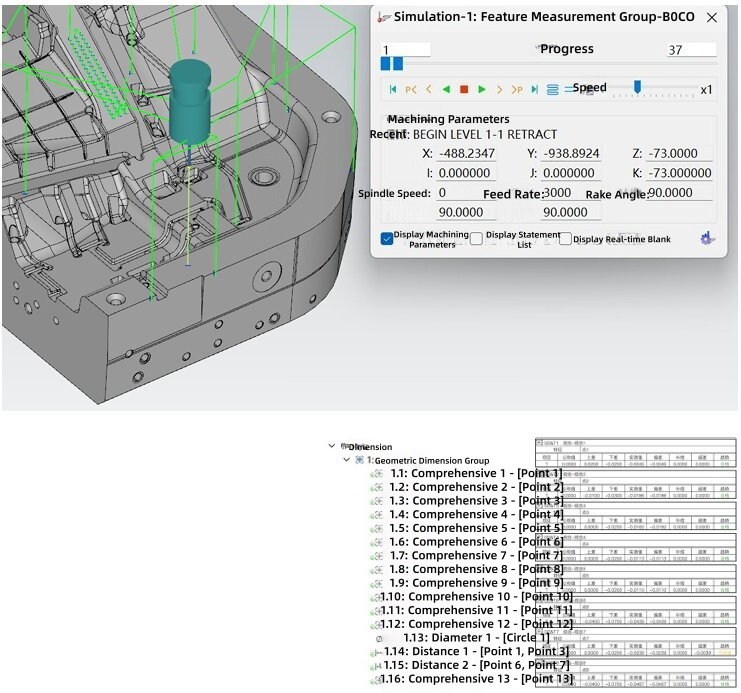

A top global automotive factory. Large molds are bulky and difficult to load/unload for offline measurement. YSCAM solved the complex surface measurement challenges.
0.01mm
Accuracy Improvement15%
Efficiency Increase

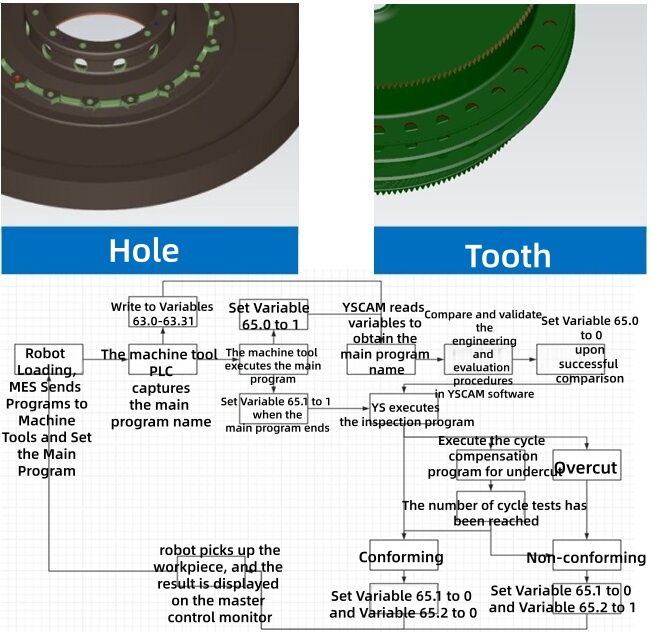

A 5-axis automated line for disk parts. Achieved on-machine measurement and iterative tool compensation for holes, slots, and gear features, integrated with MES.
Loop
Auto Iterative CompensationMES
Full Line Automation Access.png?w=660&h=688)

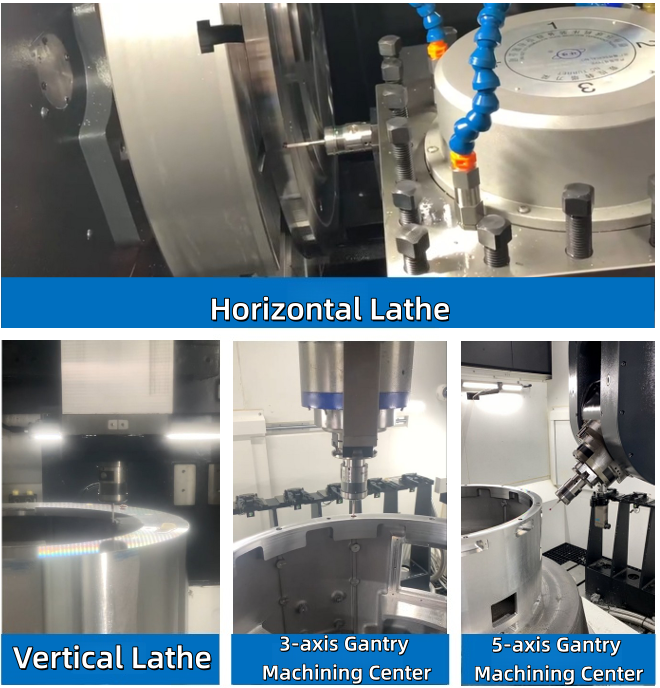

Unified measurement standards across five different machines (Horizontal Lathe, Vertical Lathe, Gantry 5-Axis). Solved deformation issues caused by re-handling large parts.
<0.01mm
Deviation Control100%
Eliminate Handling Wait.png?w=778&h=859)

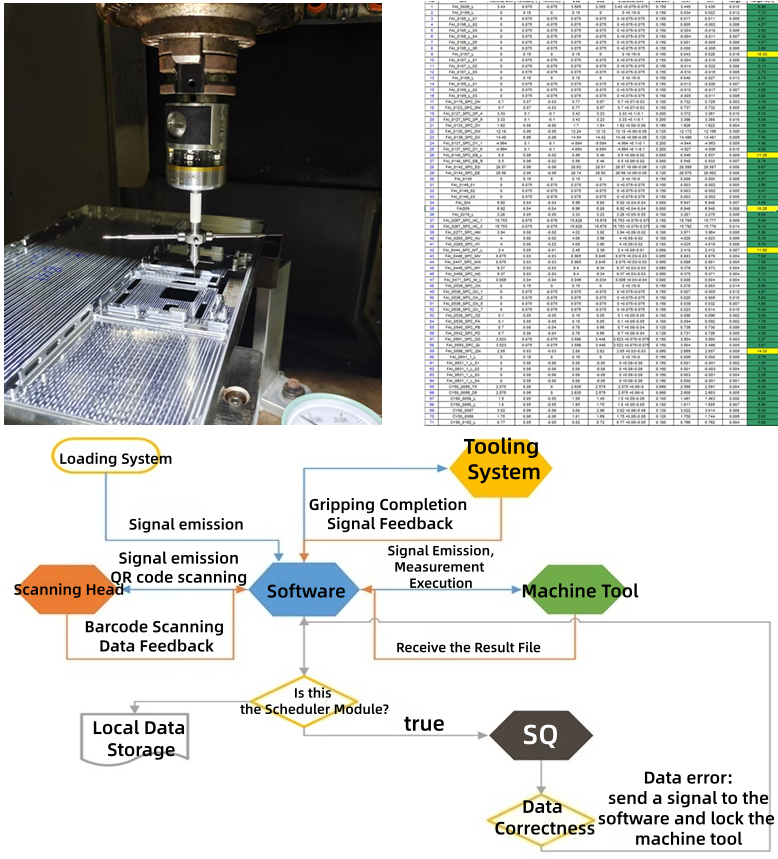

Retrofitted aging drilling and tapping centers into an automated inspection line. Comparative measurement ensured accuracy for high-frequency inspections.
